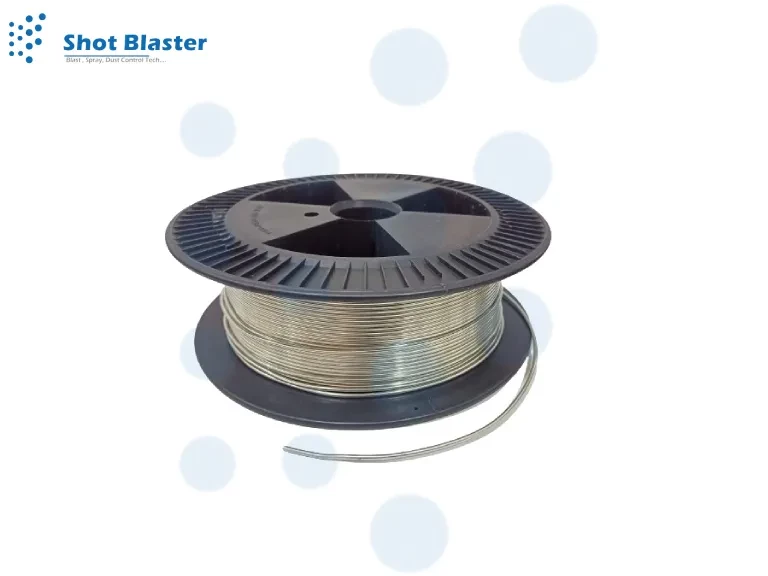

Babbitt Wire

Name: Babbitt Wire
Brand: Shot Blaster
Availability: InStock

Overview

Price Range: ₹ 2.3K /KG - 3.5K /KG

Specifications of Babbitt Wire

Material Babbitt Alloy

Density 7.38 g/cm3

Melting Point 370 Deg. Celsius

Size 3.15 MM

Usage Coating & Metalizing

Brand Shot Blaster

Appearance Silver

Packaging 25 Kg / 50 Kg / 1 Ton

Packaging Type Bubble Wrapping & Box

Transport Type Land / Sea / Air Transport

Send Inquiry Talk To Expert

Applications of Babbitt Wire

Using Babbit Wire to insulate electronic equipment from RFI and EMF and to prevent solvent-resistant corrosion.
Ball bearings and coatings for machine part connections that can be soldered often employ Babbitt wires.
Flame spraying is one of the many spray applications for which Babbitt alloy wire is appropriate.
Tin, copper, antimony, and lead are just a few of the metals that can be used to create babbitt wire.

Babbitt Wire Details

Babbitt Wire is generally used as metal wire for thermal spray applications. When Babbitt thermal wire is used in a thermal spray coating application in the thermal spray gun, wire flame spray gun, arc spray gun. In the thermal spray coating uses Babbitt then the deposition rate and speed are increased, resulting in faster production, less waste, and less cost. It is a white metal alloy of Tin used for surfacing Babbitt Bearings or coating components

Tin base Babbitt alloys Wire are considered better than Lead base alloys for most applications because they are more comfortable to pour and provide a good bond between the bearing shell and lining. In this process, Babbitt ingots are melted and then poured into bearing cavities, allowed to harden, and then the surface is machined down to meet required tolerances.
Tin and Tin Alloy (Babbitt) Thermal Spray Wire is a solid wire used for the protection of containers used in food processing/storage and for the improvement of glass-lined tanks. Tin Babbitt Wire produces very dense coatings from 0.25 to 0.65 mm (0.01 in to 0.025 in) thick that provide corrosion protection from various solvents.

It is nobler than steel in the electrochemical series of metals and alloys. Coatings of Tin can also be used as an effective EMF/RFI shield. Occasionally, Tin is used as a bond coat for high melting point materials such as Monel (nickel-copper), nickel, bronze, and stainless steel. these thermal spray wires are designed for application using electric arc spray or combustion flame spray gun.

Benefits of Babbitt Wire

Babbitt alloy can be composed of several different metals, including tin, antimony, copper, and lead, depending on the intended application and wanted properties. The most usual Babbitt is either tin or lead-based. Babbitt wire price depends on the quality, and quantity of the wire.

Extremely Consistent Composition
High Deposition Rates
Less Costly to Use
Less Waste
Meets/Exceeds Engineering Standards
Offers Bright Metal Appearance
Reduced Need for Cleanup
Very Low Oxide Levels

Babbitt Alloy Wire Manufacturers in India

Babbitt Alloy Wire Manufacturers in India. we are the Manufacturer, Supplier & Exporter of thermal spray wire, Sand Blasting Machine, Shot Blasting Machine, Grit blasting machine, sand blasting cabinet, pressure blasting cabinet, zinc spray gun, arc spray gun, thermal spray gun, Babbitt wire price in India.

Buyer Questions

Common questions about Babbitt Wire.

Buyer questions related to babbitt wire, specifications, application, price, and machine selection.

Send Inquiry Talk To Expert

What is the purpose of shot blasting?

Shot blasting is a technique for obtaining excellent cleaning and surface preparation for secondary finishing operations. Shot blasting is commonly used for: Cleaning iron, steel, non-cast parts, forgings, and so on. Mechanical cleaning of sheets, rods, coils, wire, and so on.

What are the benefits of using steel shot?

The primary benefit of using steel shot is that it is non-toxic, which makes it safer for the environment and for animals that may ingest it. Additionally, steel shot is generally less expensive than other types of shot, such as lead.

What size compressor do I need for portable shot blasting equipment?

For smaller portable shot blasting tasks, an air compressor with a flow rate of 10CFM - 20CFM is ideal. A compressor that produces between 18CFM and 35CFM is better for larger jobs that require a more powerful experience. A CFM of 50 - 100 is required for an industrial type of portable shot blasting machine.

How much PSI is required for a portable shot blasting?

For maximum efficiency with any abrasive Portable shot blasting Machine project, use a tank with a minimum pressure of 100 PSI. Working with a lower PSI will extend the duration of your project significantly. Your pressure cleaning project will take four times as long if you cut your blasting pressure in half.

How much does a portable shot blasting machine cost?

The national average for 1,500 square feet is between 40 K and 1 Lakh, with most homeowners spending between 40 K and 1 Lakh to lightly abrasive shot blast 1,500 square feet using steel shots, Steel Grit copper slag, silicon carbide, or aluminum oxide.
