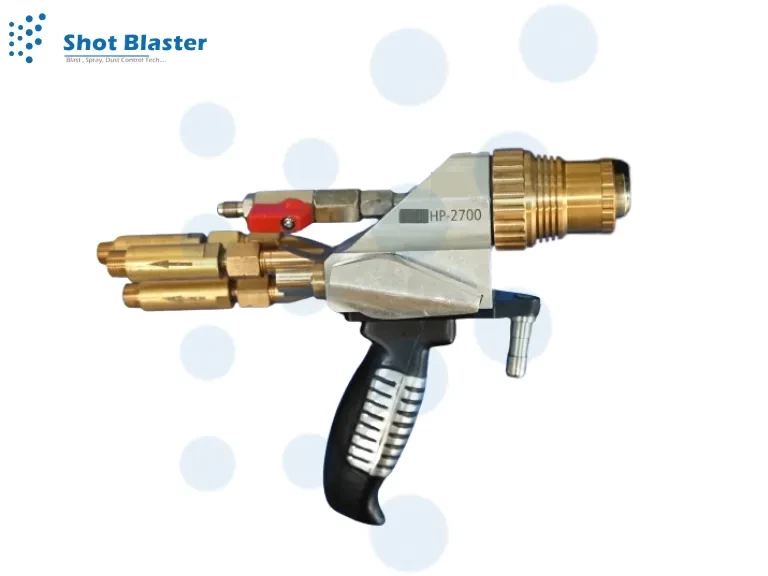

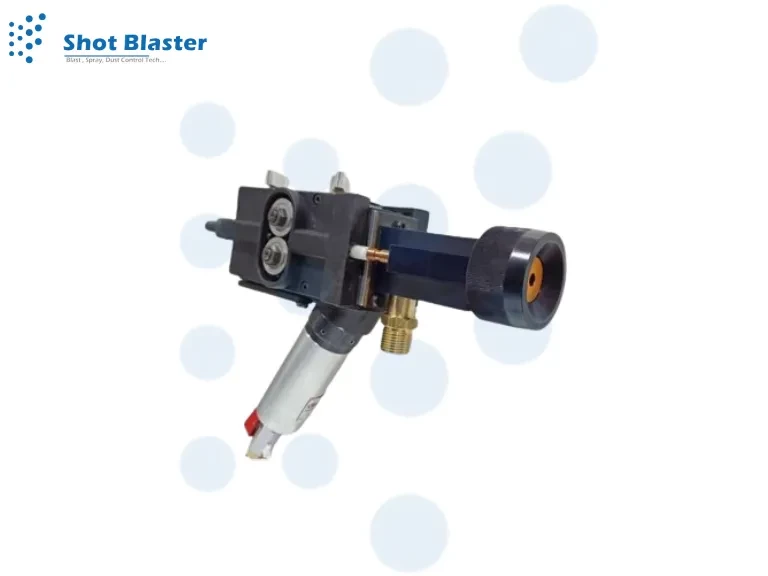

Metalizing Gun

Metalizing Gun is a name given to a thermal spray gun coating process that is utilized for coating metal on product surfaces. The resultant metallic coatings should be used for protective, decorative, or functional purposes. These coatings are also known to be long-lasting(longevity), effective, and highly versatile. Coatings specialize in three types of zinc coating gun processes:

• Electric arc spray gun

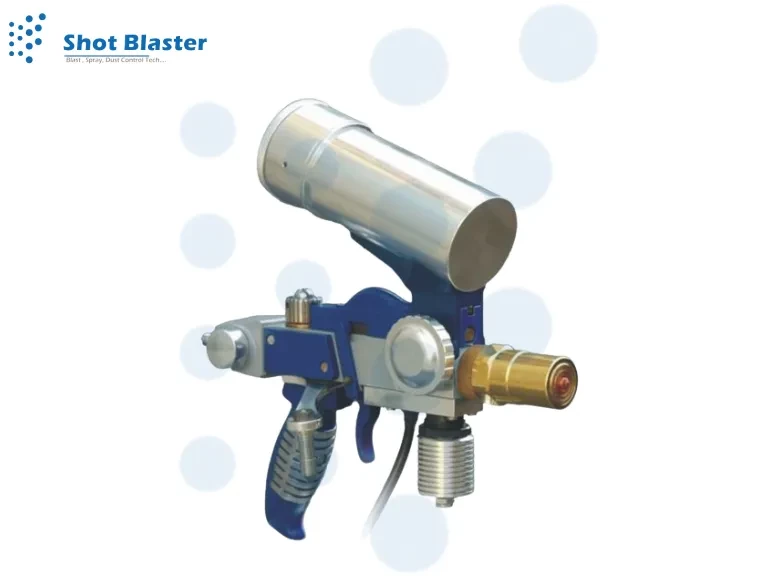

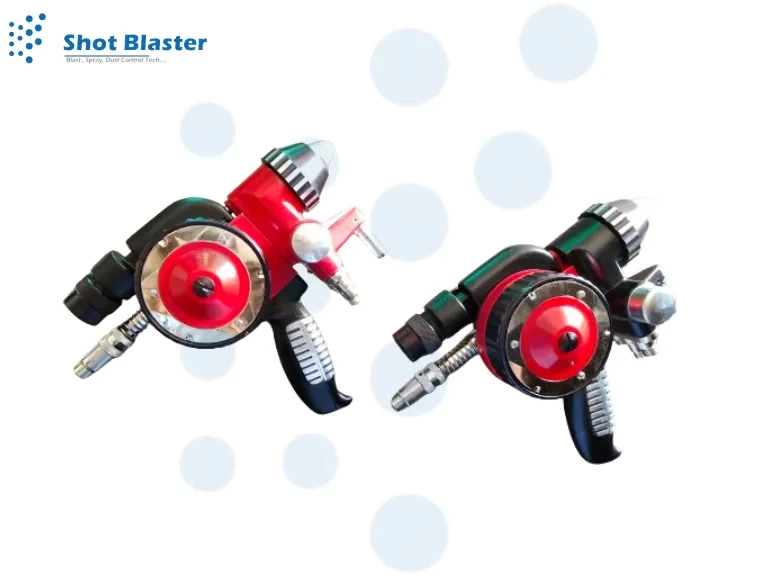

• Combustion powder spray (wire flame spray gun, rod flame spray gun)

Metalizing Gun For Sale

In this process, the basic principle of the heat source is the same as wire spray (wire flame spray gun) except that powders or Rod are fed through a flame and propelled by high-velocity oxygen or air onto a substrate Compressed air is concentrated around the flame, atomizing the molten material into fine spherical particles which propels these particles at high velocity onto a substrate.

In this process, we utilize two metallic wires that are electrically charged with opposing polarity for the coating feed-stock and we feed the spray material in wire form into a fuel gas-oxygen flame where it is melted by the heat (temperature up to 3000°C) of that combustion. This will cause them to throw a molten arc between each other. We will next inject inert gas or high-velocity air to trigger the atomization of the now-molten material and propel onto the substrate to form the coating.

Characteristics of Metalizing Gun

• Arc-sprayed metal coatings are not homogeneous. The first molten droplets from the metalizing gun supplier hit the substrate and flatten out. Subsequent particles overlay the first deposit, building up a porous lamellar coating. Bonding is essentially mechanical, although some metallurgical bonding also may occur.
• The small pores between droplets soon become closed as the coating thickness increases. These microscopic spores can hold lubricants and are one of the reasons metalized coatings are used for increased lubricity on wear surfaces.
• The tensile strengths of sprayed coatings are high for the relatively low melting point metals used. Ductility is uniformly low. Therefore, parts must be formal first and then sprayed. Thin coatings of low melting point metals, such as sprayed zinc on steel, are a minor exception to this rule and can withstand limited forming.

Advantages of Metalizing Gun

• To achieve insulation
• Resistance to corrosion
• Significant cost advantages
• Not subject to degrading
• Anodic protection of surface
• No cure time or temperature to limit metalizing
• Stronger adhesion than paint
• Longer lasting than paint
• Faster and more productive
• Surface roughness no more than 0.05 mm
• Pure metals and alloys can be sprayed
• Can be operated under extreme temperature conditions

Metalizing Gun Price in India

Our Metalizing Guns Price is low as compared to others, The flame spray is being used now predominantly as a maintenance tool for repair and rebuilding of machinery. It is also being used to a greater extent than ever in the manufacture of new products, particularly as a means of producing new corrosion-resistant materials. There are so many utilities already developed for metalizing in the production of new products, that the handwriting on the wall of postwar activity is quite evident.

We are a manufacturer of Metalizing guns, flame spray guns, Wire flame spray guns, Metal Spray Gun, Thermal Spray Gun, & Spare Parts, Sand Blasting Machine, pressure blasting cabinet, grit blasting Cabinet, and shot blasting machine. Arc Spray Gun Price and Metalizing gun price is low with the finest quality. Our Zinc Spray Coating & Metal Spray Gun Equipment is permanent and simple to use and low maintenance.
