Shot Blaster

Shot blaster is extensively used for automated surface treatment and finishing of castings. In shot blaster processes the stream of shots is produced and formed by blasting turbines, making up a kinetic and powerful system comprising a separating rotor, an adapting sleeve, and a propelling rotor equipped with blades. Industrial shot blaster is a surface treatment method using high-velocity steel abrasive. Shot blaster is a process through which it is possible to obtain high-quality cleaning and surface equipment for secondary finishing processes.

Shot Blaster Machine

The shot blaster Machine performance- i.e. the quality of shot arranged facades depends on the actual design and operational parameters of the unit whilst the importance of relevant parameters are connected with the geometry of turbine elements and the level of its combination with the separator system. The circulation of the shot blasting machine medium enhances the integrating factor of the process line, starting from the shot / sand blasting hopper, through the propeller turbine, casting treatment, division of a contaminated abrasive mixture, to its recycling and reuse.

Working of Shot blaster Machine

In this process, a stream of abrasive media with the wanted kinetic energy is produced and propelled onto the surface to be used. The stream of the cleaning tool, being a mix of metal shots, is a dynamically variable system, involving an intensive and separated zone, as revealed by numerous studies. The actual relationship of particular zones in the structure of the shot stream considerably changes the shot blaster efficiency. The greater the combined zone, the more effective the process. Other determinants of shot operation efficiency include:

• satisfying the criteria bearing the design of blast tools,
• properties of the washing agent which has to meet the special process requirements,
• The optimal shape of the shot stream in the duration of its geometric, kinetic, and changing parameters,
• the direction of the jet hitting the surface of the treated field.

Parts of Shot Blaster Machine

Shot blaster has 6 main parts are the following:-

Blast wheel-The wheels are the backbone of the shot blaster. There is a number of wheels that are placed in the shot blasting machine, it depends on the type of task to be shot blasted. Apart from its efficiency & cleaning also depends on the character of the wheel, therefore, it should have a quality ingredient used in the machine for the effective shot blaster process.

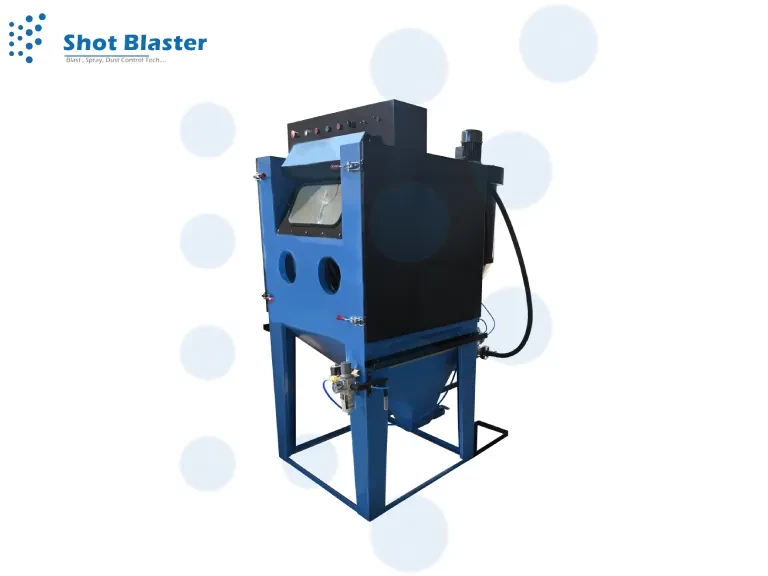

Cabinet - the shot blaster cabinet of the shot blaster is involved in the articles that are to be managed in closed, for a vibration-free blasting method. The shot blasting cabinet is commonly made of string steel or another abrasive material, lined with wear-resistant alloy. To use a mini shot blaster positively one should do a private inspection of its door and air purifying Procedure.

Work Handling Tool - it depends on the types of shot blaster machine you are working on as per your job requirement, and also on the size & quality of the parts. If we talk about the Tumblast shot blasting machine, we have to look at whether the conveyor belt or rubber belt shot blaster used in the machine should not get harmed during tumbling to protect efficient blasting. Meanwhile, table type shot blasting machine parts must be placed again and again on the table to prove complete cleaning of the surface. Apart from it in Hanger type shot blasting machine sometimes parts get suspended on the trees hung, then special fixtures are usually carried into the abrasive stream. We also have to see after its preservation timely for its effective use.

The elevator of the Machine - the abrasive recovery system is produced at the bottom of the shot blaster cabinet and attached to the screw conveyor on-base of the elevator, which carries the separator also. The production rate of the machine may go down elevator would not work properly therefore one should know its function and maintenance which is required by the machine from time to time.

Air Separator - When abrasive material infiltrates into the blast wheel, that must be cleaned in all contaminants for the fertile use of the machine, Cleaning of abrasive from the blast wheel is the foremost role of a separator in the small shot blaster, so it should keep working correctly it the time of shot blaster method.

Dust Collector - it is the most essential part of the shot blaster for filtration. A dust collector is to recover dust during the blasting process; one can also learn the uses of DC in the machine as per its name. The dust normally full air from the separator & cabinet ventilation. Users should assure the dust controller's precise work during shot blasting for a pollution-free atmosphere and for the health of workers working in the industries.

Shot Blaster Machine price

Shot blaster machine price depends on the size and types of shot blasting machine in India. We are the Best sand blasting machine, Shot Blaster machine Manufacturers in India at a low price for sale with the best quality.

we provide all types of Industrial mini shot blaster, small Shot blaster machines all over the world with the best quality. we are also a manufacturer of sand blasting machine, Grit blasting machine, Blast rooms, sand blasting cabinet, sand blasting nozzle, sand blasting helmet, and all types of Thermal spray guns, thermal spray wire, babbit wire, zinc wire, copper wire and abrasive shot blaster media. our company has a product portfolio with the best price in India.
