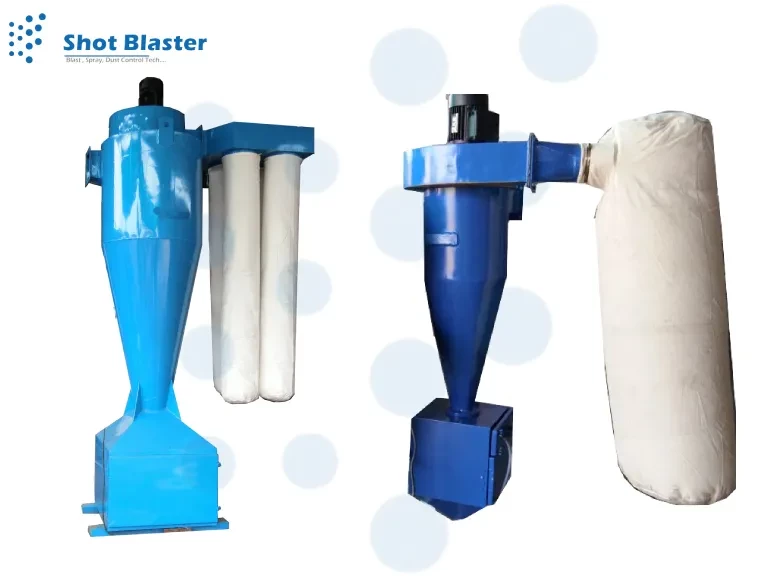

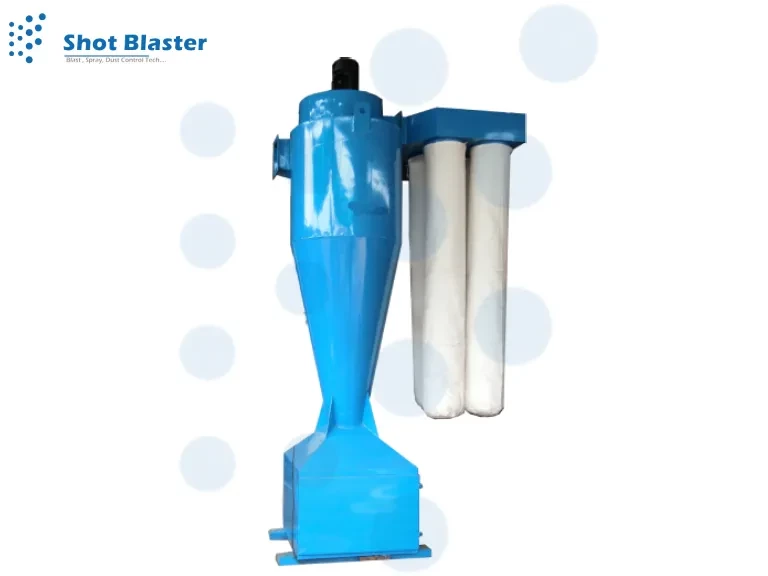

Cyclone Dust Collector

Name: Cyclone Dust Collector
Brand: Shot Blaster
Availability: InStock

Overview

Price Range: ₹ 1 Lakh - 5 Lakh

Specifications of Cyclone Dust Collector

Material Mild Steel

Bag Type Fabric Bags

No of Bags 02 - 04 Nos (according to req.)

Filter Cloth Area 1 - 20 Sq. Mtr

Motor Power 3HP - 10HP

Fan Capacity 500-1500 CFM

Brand Shot Blaster

Model No. SCL 1500, SCL 3000, SCL 4000, SCL 5000

Packaging Bubble Wrapping / Box

Transport Land / Sea / Air

Usage Collect Fine Dust During Sand Blasting & Coating / Mentalizations

Send Inquiry Talk To Expert

Applications of Cyclone Dust Collector

A cyclone dust collector filters the air to get rid of chemicals, gases, dust, dirt, and other waste.
The bulk of large particles is often removed using cyclone dust collectors as pre-cleaners before being processed in a fabric bag house, which is more productive.
A typical tool for controlling air pollution is a cyclone dust collector.
Due to its high efficiency, this kind of dust collector is highly effective for sandblasting chambers.

Cyclone Dust Collector Details

We are the greatest Cyclone dust collector manufacturer organization in India with a commotion-free centrifugal fan. Our Dust assortment unit is dust-free and commotion-free. Essentially clamor made by exhaust fan, If exhaust fan impeller is Statically and Dynamically adjusted so its reasonable.

A cyclone dust collector is to isolate any metallic or other dust particles from the splashing/blasting room and release clean air to the climate. The pull made by the fumes fan causes the dust-loaded air to go into the cylindrical/conical body of the cyclone digressively at the top and the stream accepts a vortex design as it ventures helically descending. The centrifugal force from the air's extraneous speed makes the heavier dust particles move radially outward towards the cyclone's divider. In the cyclone, the dust particles get isolated by centrifugal activity and get gotten comfortable with a dust plate at the lower part of the cyclone. Through the fumes fan, the perfect air twists upward and exits at the highest point of the cyclone.

Cyclone Type Dust Collector Specifications

MODEL	CFM	POWER	NO. OF BAGS	TYPE OF BAG	HEIGHT	WIDTH	LENGTH
S-CL3000	3000	5H.P	04NOS	Fabric bag	3000	1100	1800
S-CL4000	4000	7.5H.P	04NOS	Fabric bag	4000	2000	2000
S-CL5000	5000	10H.P	04NOS	Fabric bag	4900	2300	2300

Cyclone Type Dust Collector Features

It has compartmentalized construction, which allows easy removal of cone sections without replacing the entire system.
The internal helix forces contaminants/particles out of the air and down into the cone section. Works on the effect of the centrifugal force
The tapered cone section is there so that heavy particles can move down easily with the help of its structure.
Storage discharge drum where heavy particles are discharged off.

Cyclone Dust Collector Manufacturer in India

Shot Blaster is the leading manufacturer of cyclone dust collectors in India. We have a wide range of dust collector for sand blasting machines, Flame Spray Gun, sand blasting cabinet, and blast room. We are also the supplier and exporter of Sand blasting machine, Grit Blasting machine, Shot Blasting machine, and abrasive media at a low price for sale in Rajasthan, India.

Buyer Questions

Common questions about Cyclone Dust Collector.

Buyer questions related to cyclone dust collector, specifications, application, price, and machine selection.

Send Inquiry Talk To Expert

Are glass beads safe for sandblasting?

In comparison to other blasting procedures, it is a safe procedure. Sand blasting can be replaced with glass bead blasting. The procedure is safe for the environment.

What is the difference between sandblasting and shot blasting?

The medium used is one of the primary distinctions between shot blasting and sand blasting. Almost exclusively, shot-blasting employs abrasive "shot" made of metal, such as aluminium oxide or carbon grit. Sandblasting can use metallic shot, but it is more commonly used with gentler abrasives like organic media or glass.

What's the difference between sandblasting and bead blasting?

Bead blasting is comparable to sandblasting, but it uses considerably less air pressure, making it a much slower and gentler procedure. When inflicting any harm to the metal is a worry, it's ideal for stripping it clean.

What size compressor do I need for portable shot blasting equipment?

For smaller portable shot blasting tasks, an air compressor with a flow rate of 10CFM - 20CFM is ideal. A compressor that produces between 18CFM and 35CFM is better for larger jobs that require a more powerful experience. A CFM of 50 - 100 is required for an industrial type of portable shot blasting machine.

Can you use glass beads in a sandblaster?

In a sandblast cabinet, glass beads are commonly utilized. It performs nicely in a suction feed sandblast cabinet because it is not a particularly heavy blast media. Although it is uncommon to use glass beads with a basic sandblast pot, you can smash glass with a standard sandblast pot.
