Applications of Silicon Carbide
- For abrasive machining techniques like grinding, sandblasting, and water-jet cutting, silicon carbide powder is used.
- It is employed in many high-performance applications, including abrasives, ceramics, and refractories.
- Grinding wheels and other abrasive items have been manufactured using silicon carbide, a superior abrasive.
- Silicon Carbide is also used for preparing the hard surfaces of metal.

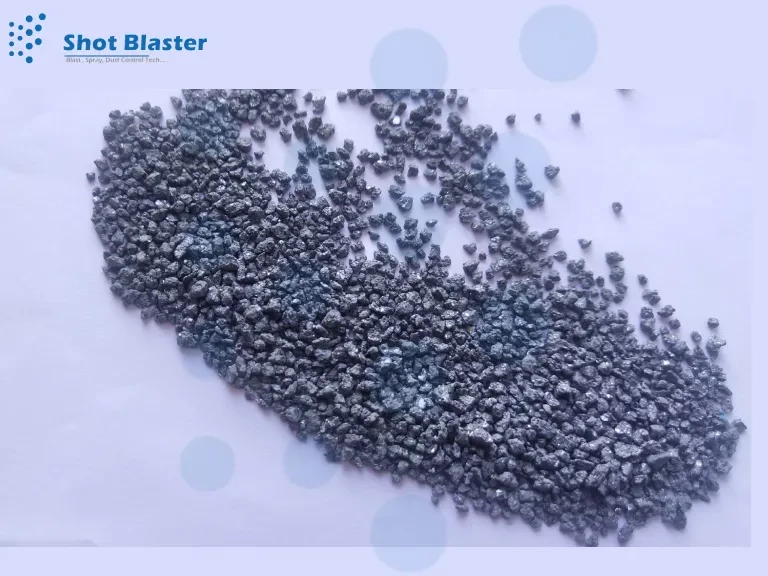

Silicon Carbide Details
Silicon carbide, sometimes referred to as silica carbide grit, is a highly swift and aggressive abrasive. There is typically a lot of shading. Silicon carbide grit abrasive is comparable to precious stone in terms of hardness on the Mohs scale. These features make silicon carbide an extraordinarily potent abrasive. In applications that entail impacting, where the workpiece would be brazed after impact, it is widely employed. The most consistent results and effective pulverizing speeds are only possible with silicon carbide grit powder. In comparison to lower-quality silicon carbide powders, better-quality silicon carbide powders are treated at higher temperatures.
Numerous high-end applications, such as abrasive media, refractories, ceramics, and others, use silicon carbide abrasive. Additionally, silicon carbide abrasive is conducive to electrical transmission and is utilized in electronic components as an obstruction
Silicon Carbide Properties
-
One of the toughest substances ever found has a Mohs hardness of 9.5, silicon carbide.
-
Silicon carbide has great thermal conductivity and can dissipate heat fast.
-
Silicon carbide is a semiconductor, which means that its electrical conductivity is between that of insulators and that of metals.
Silicon Carbide Manufacturers in India
Being renowned silicon carbide manufacturers, we put our goods through testing to ensure they meet all relevant requirements and quality standards. To do this, new processing methods must be created, novel applications must be sought, and the manufacturing process must be optimized. High-performance electronic components, refractory materials, and abrasives are just a few of the products made with our silicon carbide. The fact that the silicon carbide manufacturers do proper analyses of the chemical composition, particle size, hardness, and other physical properties is crucial for this. To enhance the characteristics and utility of silicon carbide materials and products, we make investments in research and development. To do this, new processing methods must be created, novel applications must be sought, and the manufacturing process must be optimized. To enhance the features and use of silicon carbide materials and products, we make investments in research and development.
Silicon carbide Uses
-
Silica carbide grit-based power devices are more effective and tolerant of higher temperatures than conventional silicon-based devices.
-
Silica carbide grit is a material that is used in power electronics and battery components for electric and hybrid cars.
-
Silicon carbide-based components can boost the effectiveness and range of electric vehicles.
-
Silicon carbide is used in aerospace applications at high pressures and temperatures.
-
Silicon carbide abrasive is used as an abrasive material in sandpaper, grinding wheels, and cutting tools due to its hardness and resistance to abrasion.
-
Silicon carbide grit is used in high-power LED lighting because of its excellent thermal conductivity and resistance to high temperatures.
-
Silica carbide grit is non-toxic and biocompatible, making it suitable for use in medical devices including prosthetics and implanted sensors.
-
Silica carbide grit is used in solar inverters and wind turbine components due to its high efficiency and ability to withstand high temperatures.
Silicon Carbide grit is the solitary substance compound of carbon and silicon. It was at first conveyed by a high-temperature electro-manufactured reaction of sand and carbon. Silicon carbide grit is an astonishing abrasive media and has been conveyed and made into crushing deals abrasive things. Today the material has been framed into an incredible particular assessment ceramic with amazing mechanical properties.
Silicon Carbide grit, SiC, is an exceptionally fast, extremely hard abrasive. It is regularly dark in shading. It is more diligent than aluminum oxide grit and is near the hardness of precious stone on the Mohs scale. These qualities make it an amazingly forceful media. It is regularly utilized in impacting applications where the workpiece would be brazed subsequent to impact.
Silicon carbide Grit Specification
| Grades | Particle size | SiC | Fe2O3 | F.C | SiO2 | LOI |
| F8 | +4000um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F10 | +3350um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F12 | +2800um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F14 | +2360um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F16 | +2000um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F20 | +1700um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F22 | +1400um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F24 | +1180um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F30 | +1000um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F36 | +850um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F46 | +600um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F54 | +500um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F60 | +425um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F70 | +355um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F80 | +300um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F90 | +250um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F100 | +212um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F120 | +180um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F150 | +150um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F180 | +125um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
| F220 | +106um | ≥99.0 | ≤0.10 | ≤0.20 | ≤0.50 | < 0.05 |
Silicon Carbide Grit Supplier
We provide steel shot, SS shot, copper slag, steel grit, garnet sand, quartz shot, aluminum oxide price, glass beads, etc for the Sand Blasting Machine. We provide a large range of products and are checked on various parameters, such as density, physical and chemical properties, microstructure, hardness, and durability. We are focused on our quality products and customer satisfaction.
To enable us to quote for your requirement, kindly give us the following info –
1. Particle size required (You may choose from above or give your own range).
2. Packing required.
3. Quantity required with the delivery schedule.
4. Destination port.
5. Discharge rate at the destination, if in break-bulk.
6. Any other point which may impact the quote.
We can also offer ungraded material for shipments in bulk in any quantities as desired by our buyers on FOB or CNF FO basis terms.
